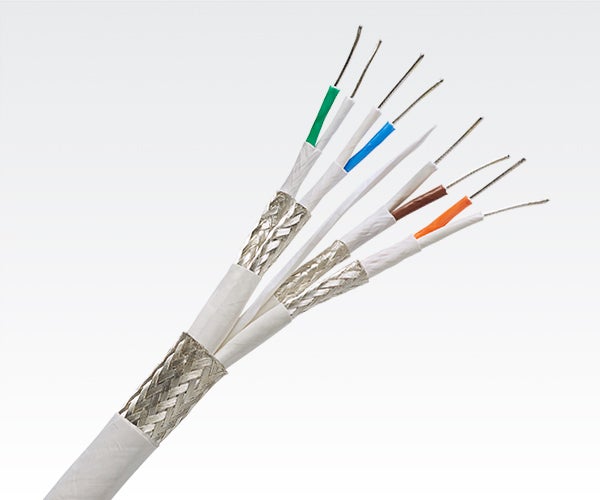

GORE® DVI Cables (Digital Only) for Defense Aircraft
These versatile single-link cables are adequately crafted for the digital component of DVI systems and fit effortlessly into standard harness designs. Compact and robust, they meet stringent aviation requirements and reliably support high-resolution aircraft displays in demanding radar environments.
Contacte con nosotros
+1 800 626 7708
Germany
+49 9144 6010
+49 9144 6816 (fax)
UK
+44 1382 56 1511
+44 1382 56 1007 (fax)
Italy
+39 045 6209 209
+39 045 6209 165 (fax)
France
+33 1 5695 6565
+33 1 5695 6401 (fax)
Spain
+34 93 480 6900
+34 93 373 7850 (fax)
Sweden
+46 31 7067800
+46 31 864226 (fax)
China (Beijing)
+86 10 5707 4999
+86 10 5707 4900 (fax)
China (Shanghai)
+86 21 5172 8299
+86 21 6247 9199 (fax)
China (Shenzhen)
+86 755 8359 8262
+86 755 8359 1654 (fax)
South Korea
+82 2 393 3411
+82 2 393 1285 (fax)
Japan
+81 3 6746 2582
+81 3 6746 2571 (fax)
Overview
Optimal Viewing On Displays
Engineers have often told us that it’s challenging designing aircraft harnesses with digital components in DVI (digital video interface) systems that can reliably stand up to demanding radar environments.
Gore offers a single-link cable solution designed specifically for the digital component of DVI systems that the military can always trust and rely on during missions.
GORE DVI Cables (Digital Only) are proven to deliver exceptional signal quality and high data rate video transmission in demanding EMI (electromagnetic interference) environments. They also support the highest video resolution for optimal viewing on aircraft cockpit and workstation displays. Unlike many substitutes, they meet rigorous military aerospace standards for impedance control, insertion loss, skew and EMI shielding necessary for stable performance in DVI systems.
Easy Fit into Standard Harness Designs

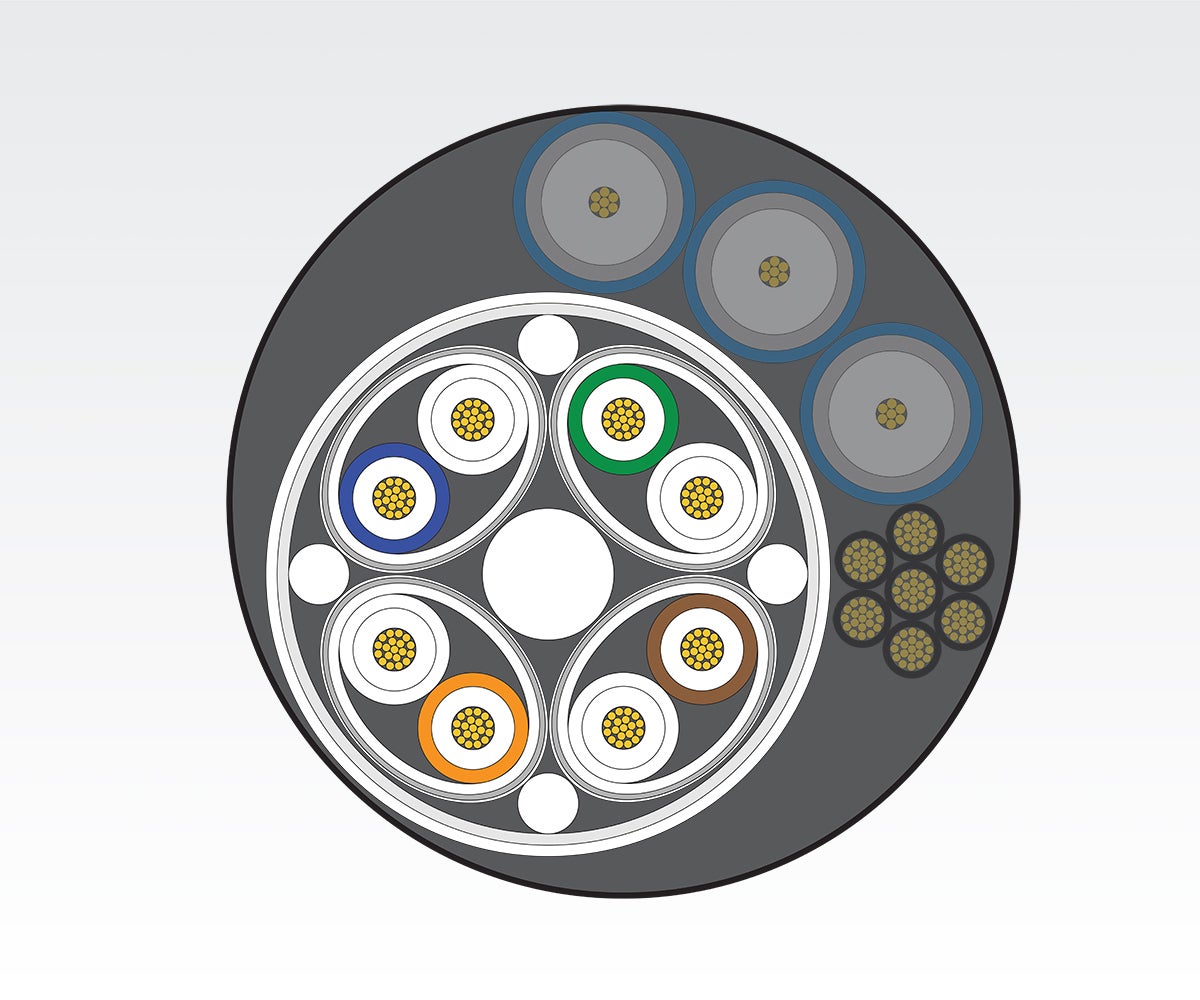

Standard harness cross-section with GORE DVI Cables (Digital Only)
Our single-link cables make it easier for design engineers to use them in standard DVI harnesses. They’re smaller, lighter and more flexible without sacrificing durability compared to substitutes. They fit easily into a harness cross-section with other components without getting damaged or breaking, saving you time and money on cable replacements.
Applications
Designed specifically for standard harnesses with digital components, GORE DVI Cables (Digital Only) provide satisfactory results in airborne applications, like:
- cockpit displays
- aircrew workstation displays
- mission systems
- weather mapping
Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC and MIL-STD-38999 with size 8 contacts. If you have any questions or to discuss your specific application needs, contact a Gore representative today.
Features & Benefits
Unlike industry substitutes, GORE DVI Cables (Digital Only) are built with extremely durable materials proven to defend against complex maintenance and operational conditions, including:
- single-link DVI digital component design
- temperature- and abrasion-resistant materials
- chemically inert, EMI shielding materials
- lightweight with smaller diameters
To system architects and engineers, our reliable cables offer a host of benefits that improve their overall performance in defense aircraft, like:
- exceptional signal quality for high-speed video transfer
- support highest video resolution for optimal viewing on displays
- meet requirements for impedance control, insertion loss, skew, EMI shielding
- robust protection and stable performance in demanding radar environments
- easy fit into standard DVI harnesses with small, lightweight, flexible construction
- compatible with a variety of high-speed connector systems and backshells
For more information about the features and benefits of our cables, contact a Gore representative today.
Properties
These values demonstrate the electrical, mechanical and environmental performance of GORE DVI Cables (Digital Only) for defense aircraft.
Electrical Property | Value |
---|---|
Standard Impedance Ohms | 100 ± 10 |
Typical Operating Voltage V | <15 |
Nominal Velocity of Propagation % | 80 |
Nominal Time Delay ns/m (ns/ft) | 4.07 (1.24) |
Capacitance pF/m (pF/ft) | 40.0 (12.0) |
Maximum Skew ps/m (ps/ft) Pair-to-Pair Within Pair |
52.50 (16.0) 13.12 (4.0) |
Dielectric Withstanding Voltage Vrms Conductor-to-Conductor Conductor-to-Shield |
1500 1000 |
Mechanical / Environmental Property | Value |
---|---|
Jacket Material | Engineered Fluoropolymer |
Jacket Color | White (Laser Markable) |
Conductor | Sliver-Plated Copper Alloy |
Conductor Color-Coding | Blue/White, Brown/White, Green/White, Orange/White |
Dielectric Material | Expanded PTFE/PTFE |
Temperature Range °C | -65 to +200 |
Part Number & Drawing
We invite you to download our drawing to view cable characteristics, like diameter size, weight, shielding effectiveness and insertion loss values.
Part Number | AWG Size (Stranding) |
---|---|
GSC-01-85249-24S | 24 (19/36) |
More Information
LEARN MORE ABOUT GORE DVI CABLES OR ORDER NOW
To learn more or discuss your specific application needs for defense aircraft, contact a Gore representative today. If you’re ready to place an order for our digital-only DVI cables, connect with a distributor now.
Also, check out our complimentary sample inventory for this product and other high data rate cables, which are shipped within 48 hours for prototyping and evaluation in your application.
Resources
Catalog: GORE® High Speed Data Cables for Aerospace & Defense
Brochures, Data Sheets,
View all resources for GORE DVI Cables (Digital Only) for Defense Aircraft
Noticias recientes
Nota de prensa
The European Aviation Network Selects GORE® Microwave Sealed Airframe Assemblies for Durable and Reliable Signal Performance
Publicado Mayo 10, 2017
Gore is pleased to announce that starting this summer, GORE® Microwave Sealed Airframe Assemblies will be used to improve Wi-Fi internet access on European short-haul flights.
FOR INDUSTRIAL USE ONLY
Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
Contact Us
Productos relacionados
Cables & Cable Assemblies
- Shielded Twisted Pair Cables for Defense Air & Land
- CAN Bus Cables for Defense Aircraft
- Ethernet Cables for Defense Air & Land
- Quad Cables for Defense Aircraft
- FireWire® Cables for Defense Aircraft
- Fibre Channel Cables for Defense Aircraft
- USB Cables for Defense Aircraft
- HDMI Cables for Defense Aircraft
- Fiber Optic Cables for Defense Air & Land
- MIL-STD-1760 Assemblies for Defense Aircraft
- Cable Protection Systems for Defense Aircraft
- Abrasion Resistant Cable Jacket for Defense Aircraft
Seguir GORE® DVI Cables (Digital Only) for Defense Aircraft
